Name: | Motorized Goniometer Stage: J01DJ10 |
---|---|
Product Description

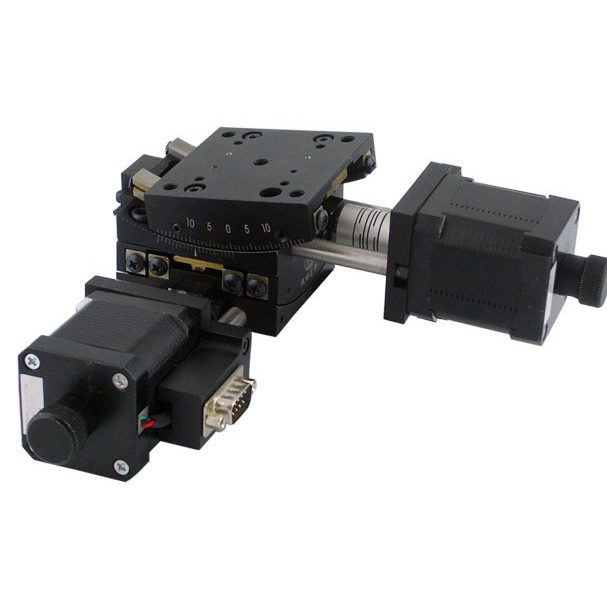

Mini Motorized Goniometer Stages,
Angle Range +/-10°
Features:
*Regular goniometer stage set with stepper motor and RS232 interface, can connect with motion
controller convenient.
*Worm
gear structure ensure the goniometer stage with high loading and accuracy
*The mounting holes both on the goniometer stage top and bottom of stage which can combine with other stage easily

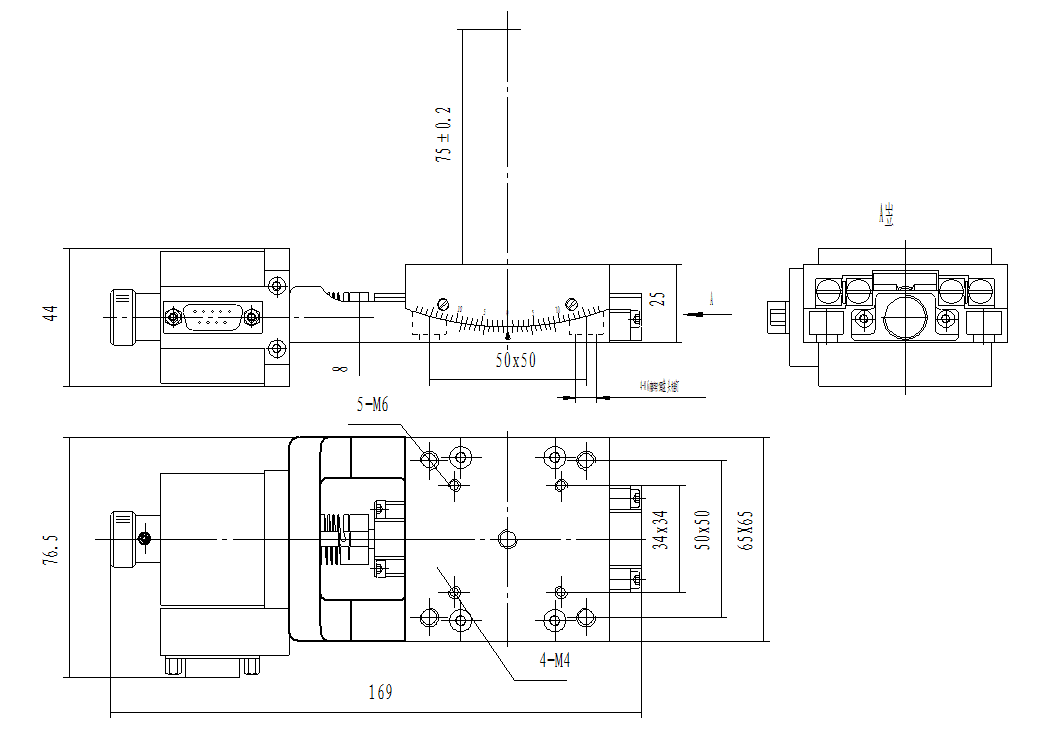

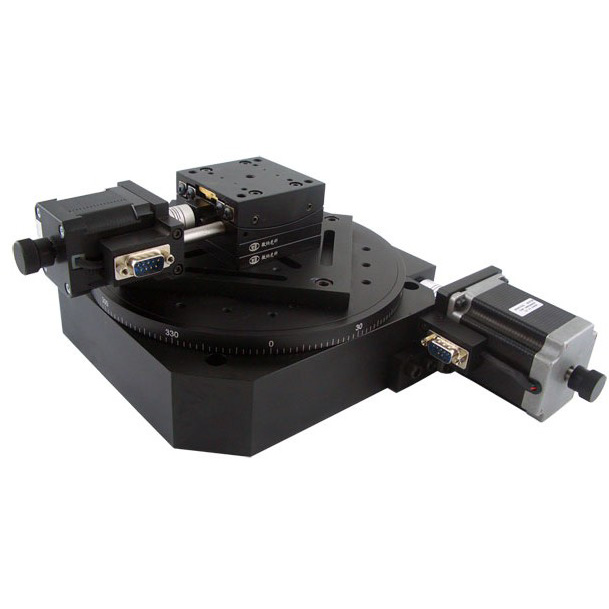

*The goniometer stage design with the same rotation centers when it use together with 02DJ15
*Both of the two goniometer stage ends have limit switches and can change the motor into servo or redesign
Model
Number | J01DJ10 |
Angle
Range | +/-10° |
Dimension | 65x65mm |
Transmission
Ratio | 352:1 |
Height
of Rotation Center | 75mm+/-0.2mm |
Drive | Worm
Gear |
Guide | Cross-roller
Guide |
Stepper
Motor(1.8°) | SST42D2121 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 5kg |
Weight | 0.75kg |
Resolution | 0.005°(non-MS
Driver) 1”(
20-MS Driver) |
Accuracy
of Rotation Center | 0.03mm |
Speed | 7°/sec |
Repeatability | +/-4” |
Accuracy | +/-9” |
Backlash | +/-4” |
