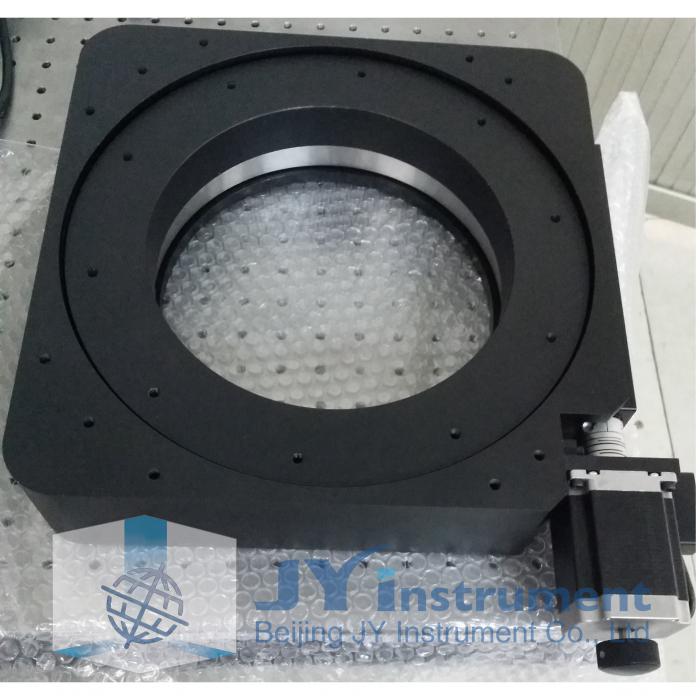

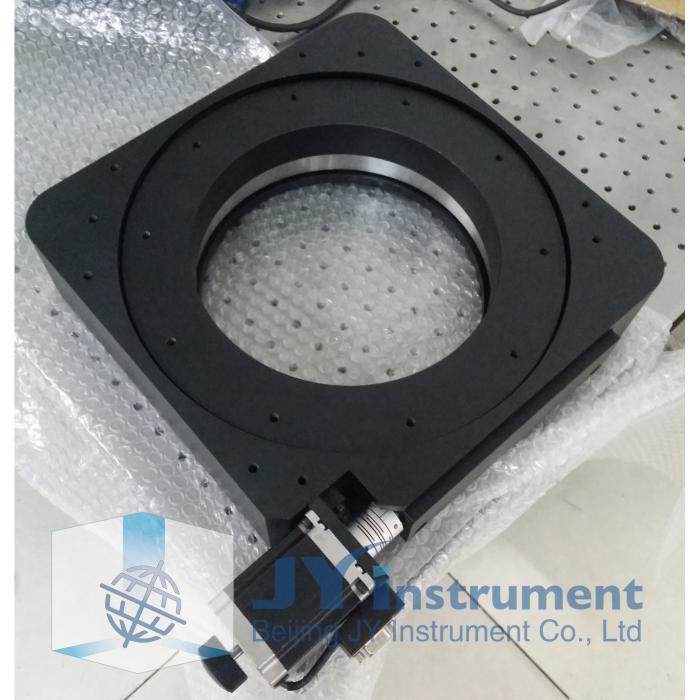

Customized Motorized Rotary Table (clear aperture 210mm)
Feature
1. This motorized rotary table design with 210mm clear aperture
2. The mounting holes one the top and could add the seal ring in the groove
This stage could be redesigned according to your different travel range and loading requirements.
More information please email us!
Item Number | DZJDX210 |
Angle Range | 360° |

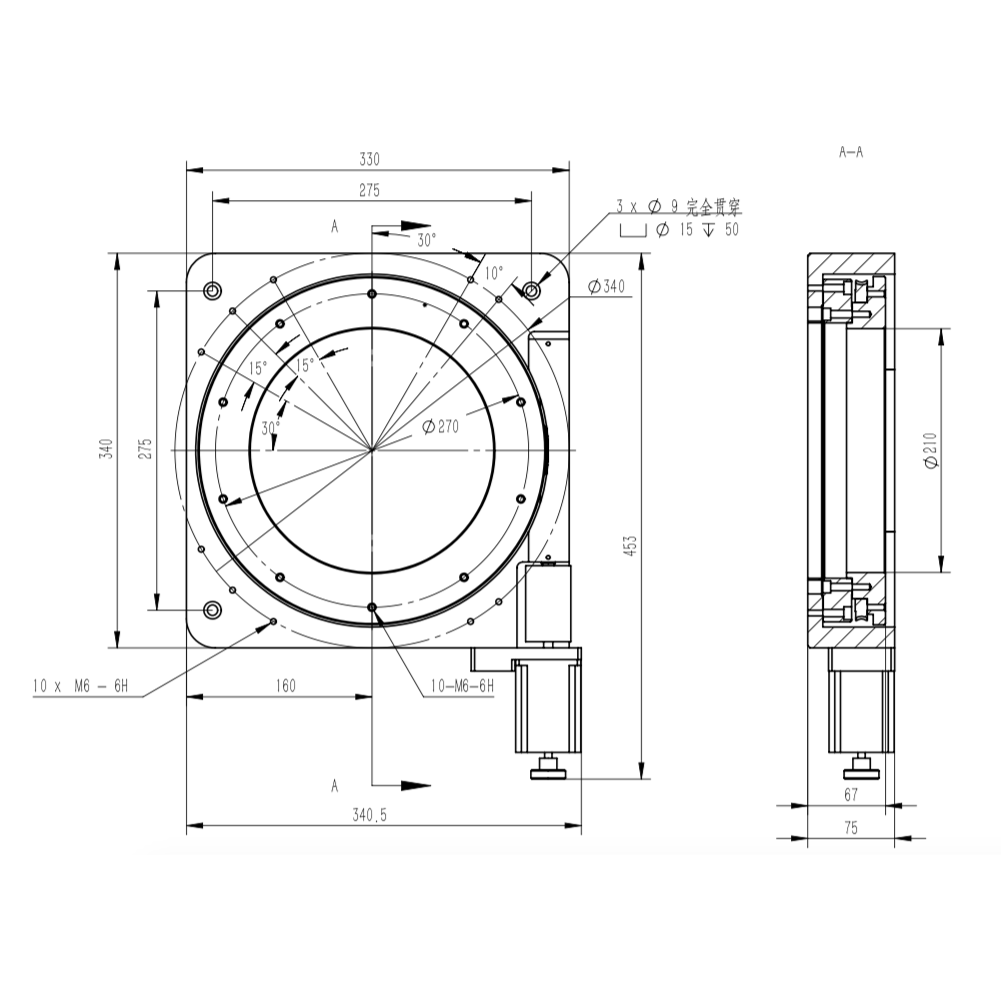

Dimension | 330X340mm |
Clear Aperture | 210mm |
Worm Gear Ratio | 180:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 1.7A |
Stepper Motor(1.8°) | 57 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 45kg |
Weight | 1.7kg |
Resolution | 0.01° non-driver 0.0005° 16 MS driver |
Speed | 25°/sec |
Repeatability | 0.005° |
Run Out of Top | 15μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 80μm |
Home Switch | Yes |
