Name:Motorized XY Table: J04DE170

Product Description

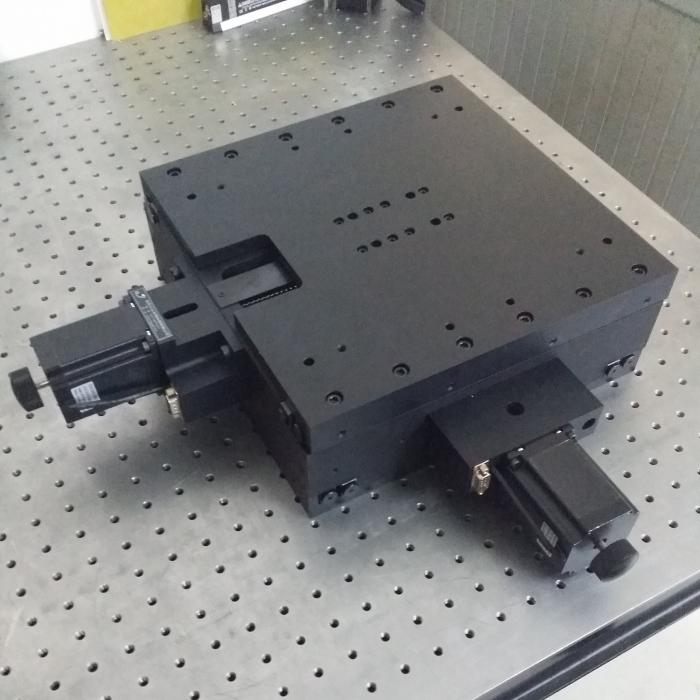

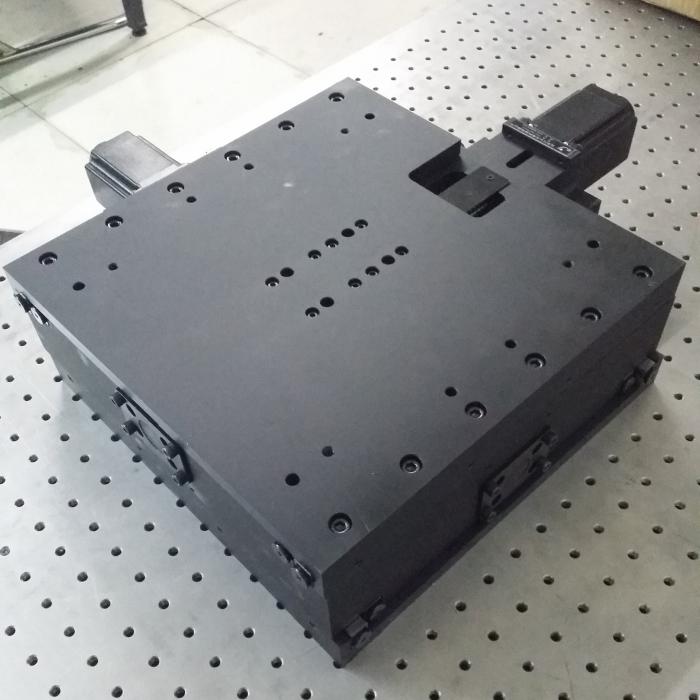

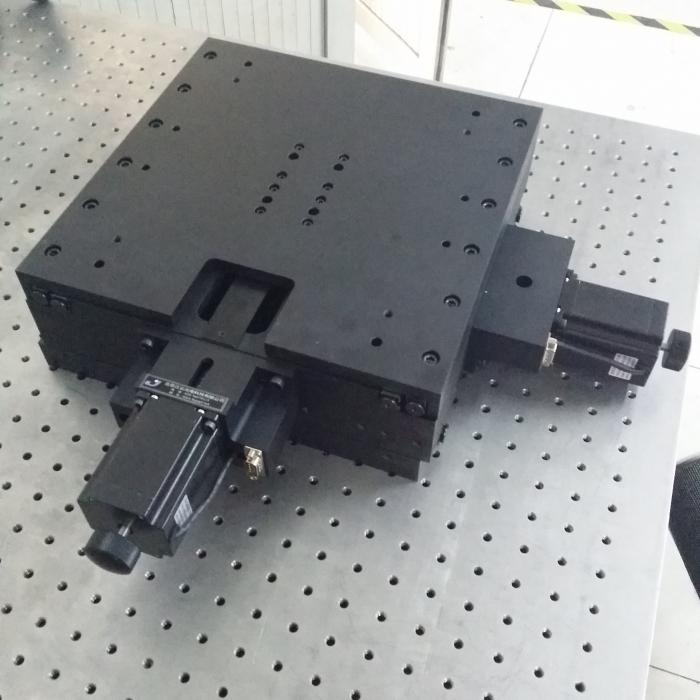

Motorized XY Table, Travel Range for single axis is 170mm



Features:

1. Regular xy table set with stepper motor and RS232 interface, can connect with motion controller convenient.

2. Taiwan ball screw use for xy table smooth moving and high accuracy

3. Mounting holes both on the xy table top and bottom for combine with other stage easily




Model  Number

J04DE170

X,  Y Travel Range

170x170mm

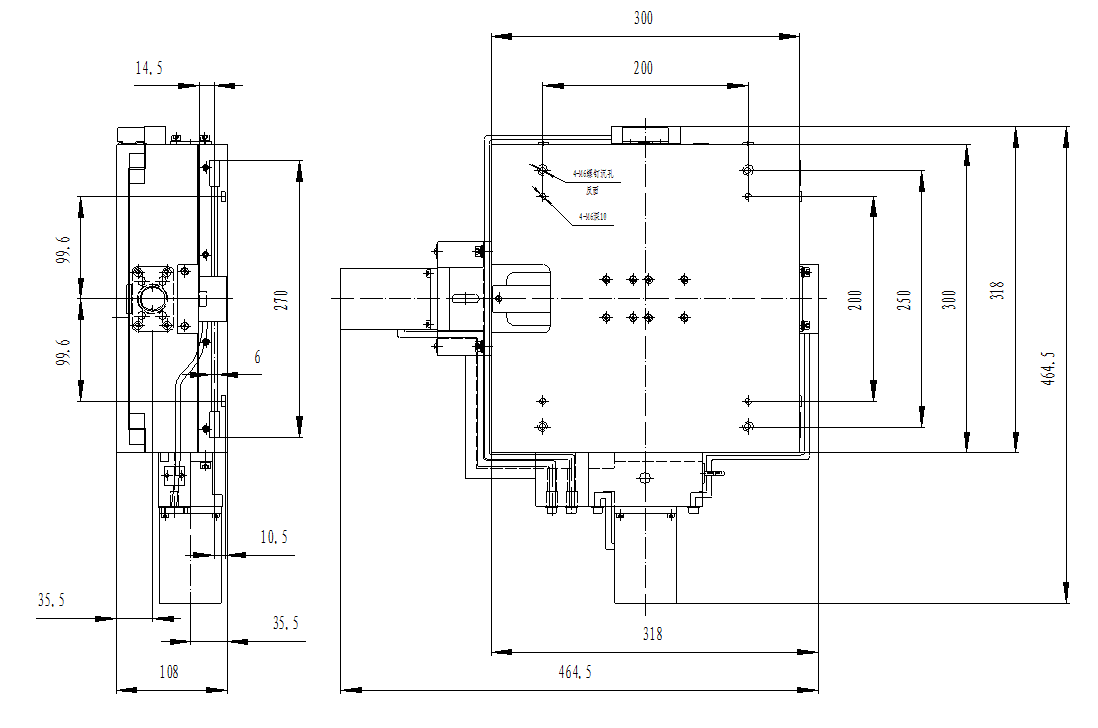

Dimension

300x300mm

Screw  Type

Ball  Screw(Leading is 4mm)

Guide

Cross-roller  guide

Stepper  Motor(1.8°)

STP42

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

60kg

Weight

10.3kg

Resolution

20μm,  non-MS driver

1μm,  20 MS driver

Max  Speed

20mm/sec

Repeatability

2μm

Accuracy

3μm

Straightness

5μm

Degree of Parallelization

15μm

Pitching

50”

Yawing

25”

Backlash

2μm
