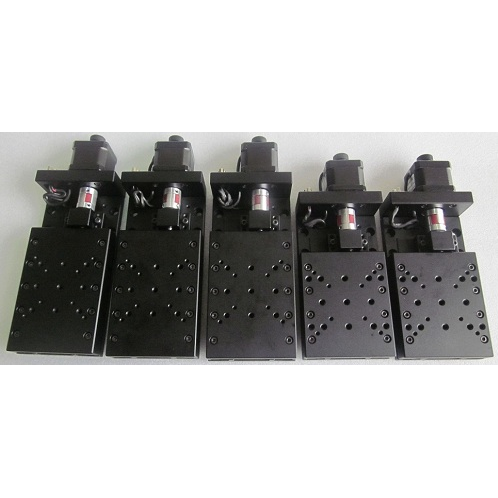

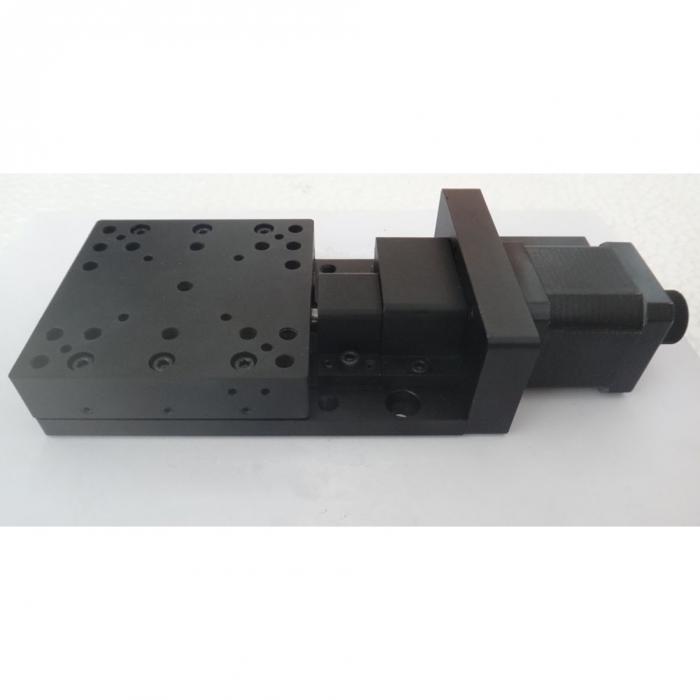

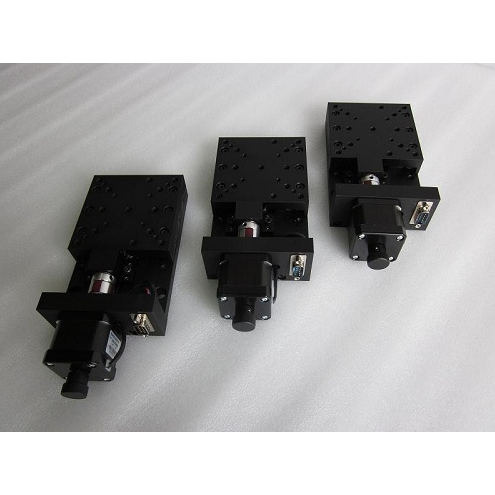

Mini Motorized Linear Translation Stages
Features
1. Regular mini motorized linear translation stage type set with small 1.8°2-phase stepper motor
2. Low-profile, high-accuracy for limited space use
3. Crossed-roller bearing requires the precise movement
4. Original position and limit switches are at both ends can supply the precision positioning and protection to the linear translation stage.
5. Applies to use in single axis or assemble into multi-axis linear translation stages.
6. RS232 interface for connecting motion controller easily
Model Number | J02DP15 | J02DP30 | J02DP50 |
Travel Range | 15mm | 30mm | 50mm |
Bearing | Lead Screw (0.5mm of leading) | Lead Screw (1mm of leading) | |
Travel guide | Crossed Roller Bearing | ||
Motor | 1.8° 2-phase STP-42D3016 stepper motor (servo motor optional) | ||
Material- Finish | Aluminum Alloy Black- Anodized | ||
Max Loading | 15kg horizontal/ 3kg vertical | 15kg horizontal/ 3kg vertical | 20kg horizontal/ 3kg vertical |
Weight | 1.3kg | 1.6kg | 1.8kg |
Resolution | 2.5um/ Pulse, non-ms driver 0.125um/ Pulse, 20 non-ms driver | 5um/ Pulse, non-ms driver 0.25um/ Pulse, 20 non-ms driver | |
Max Speed | 5mm/ sec | 10mm/ sec | |
Repeatability | 3um | 5um | |
Absolute Accuracy | 8um | ||
Straightness | 8um | ||
Degree of Parallelization | 15um | ||
Pitching | 25’’ | ||
Yawing | 20’’ | ||
Backlash | 5um | ||
Optional Accessories | Servo Motor, Motion Controller | ||

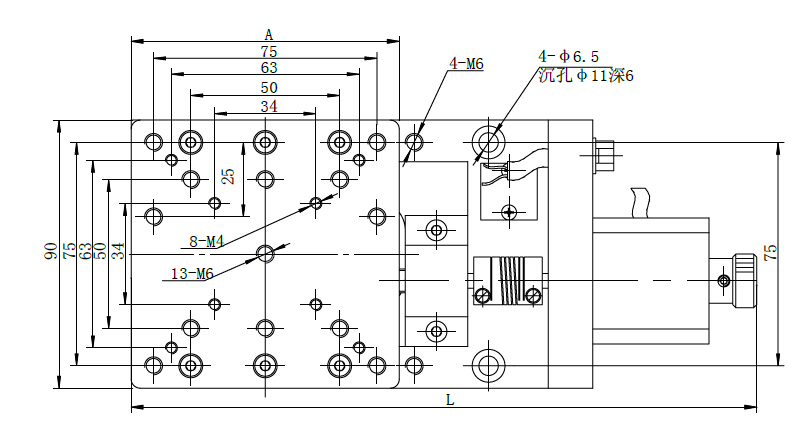

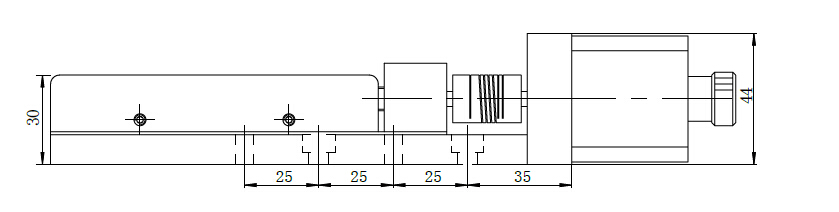

型号(Model Number) | L | A |
J02DP15 | 192 | |
J02DP30 | 210 | 90 |
J02DP50 | 227 | 110 |
J02DP75 | 252 | 110 |
