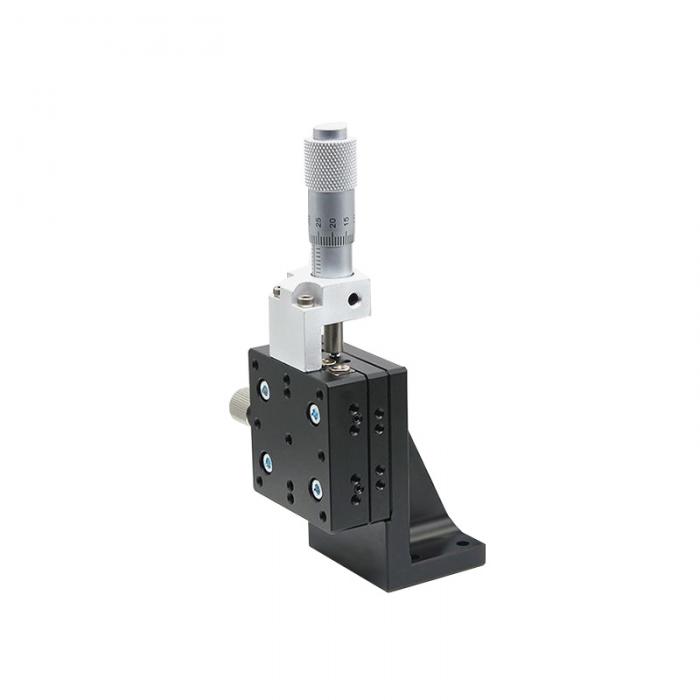

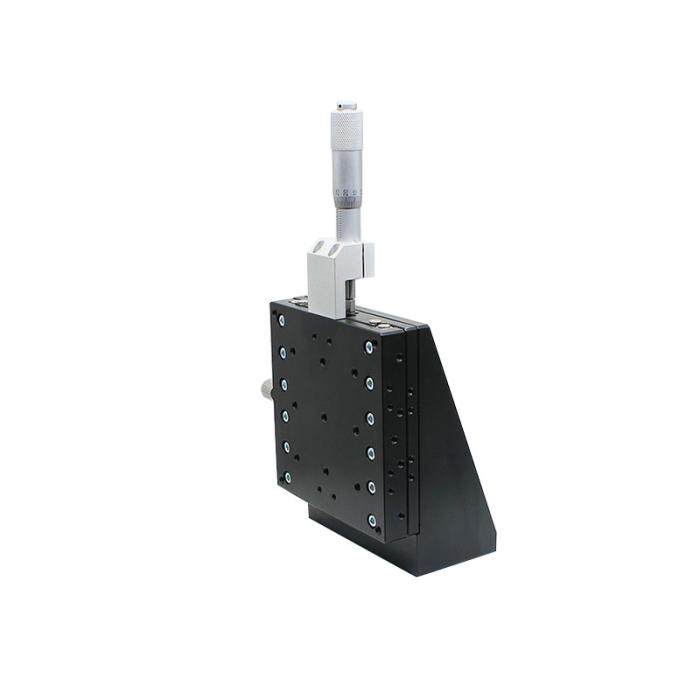

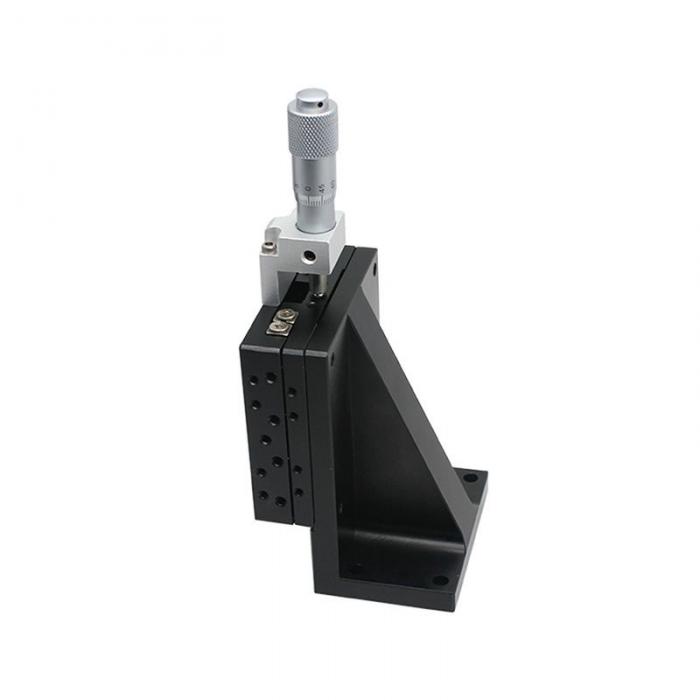

| Name: | Manual Z Linear Slide |
|---|---|
Product Description

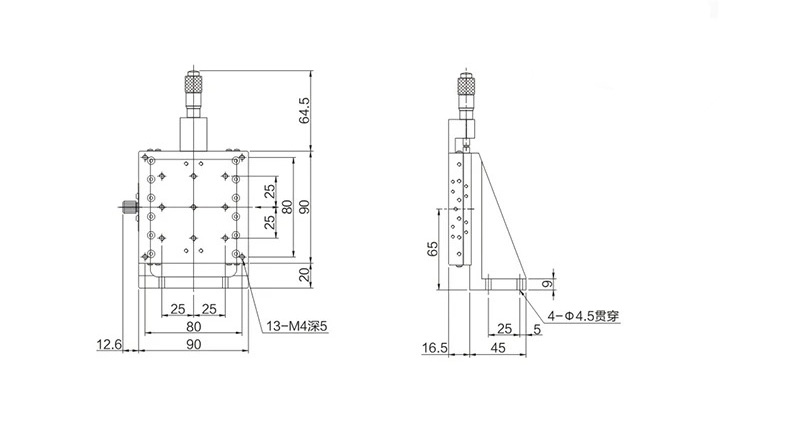

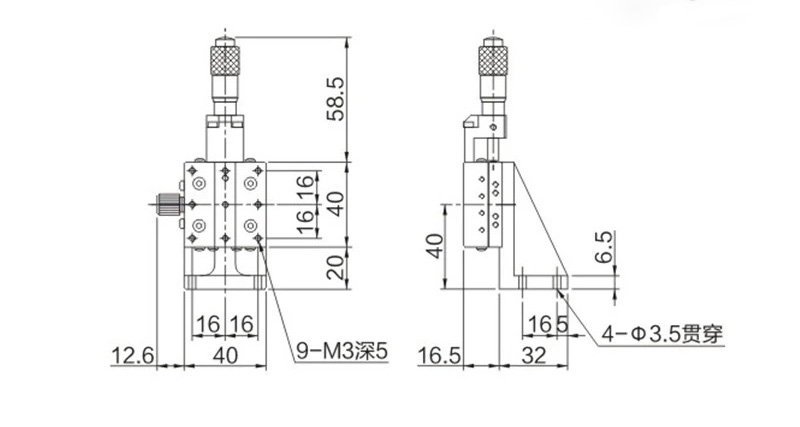

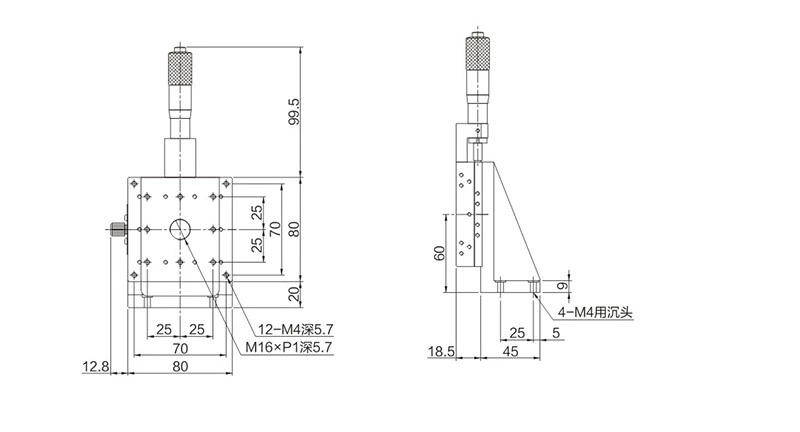

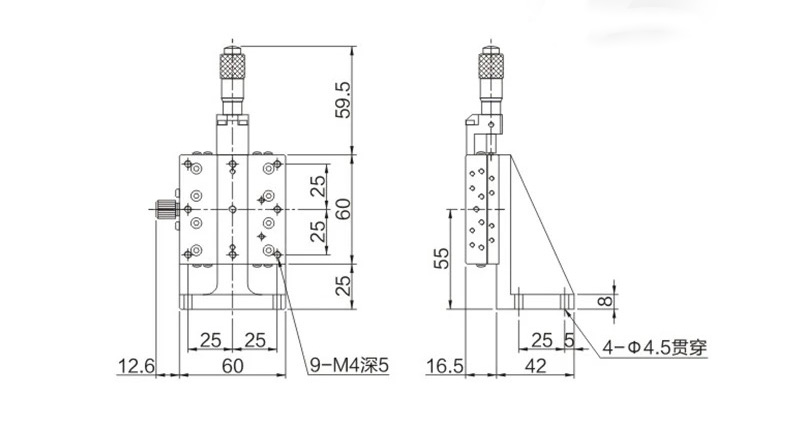

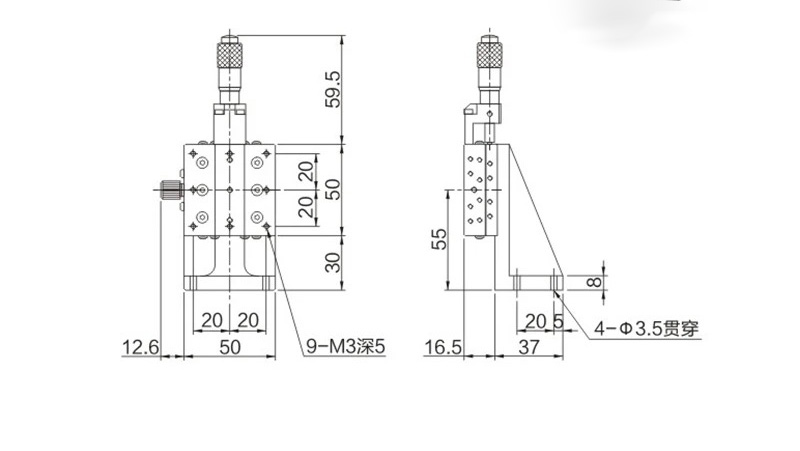

Model Number | JYZ40 | JYZ50 | JYZ60 | JYZ80 | JYZ90 |
Width | 40mm | 50mm | 60mm | 80mm | 90mm |
Travel Range | ±6.5mm | ||||
Loading | 2kg | ||||
Material | Aluminum | ||||
Min Scale | 0.01mm | ||||
Accuracy | 0.02mm | ||||
Weight | 0.22kg | 0.34kg | 0.45kg | 0.87 | 0.88 |
